Tilt Over - Square CCTV Column (TPS)
The TPS range provides undoubtedly one of the best low cost, low maintenance, engineer friendly camera mounting solutions. This CCTV column offers ease of installation, with the major benefit of safe ground level
servicing. The TPS range is a light/medium duty version of a tilting column, manufactured throughout from square section steel. Suitable for mounting in low risk public areas, the TPS range offers many practical engineering benefits, along with being unobtrusive and aesthetically pleasing.
Design Specification
- Solid and practical designs.
- The tilt over columns enables camera maintenance at ground level.
- Ideal installations where health and safety requirements are paramount.
- Maintenance and servicing, easily and safely effected by one engineer.
- Off the shelf heights up to 8 metres*
- Rigid structure ensures excellent stability characteristics.

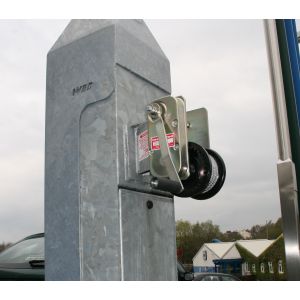

- A transferable winch unit allows multi-site servicing and leaves installation tamper proof.
- Pocket roots available for restricted foundation locations.
- Totally concealed cabling facility.
- Aesthetically pleasing designs.
- Hot dipped galvanised finish for maximum weather protection and low maintenance requirements.
- Custom modifications and towers tailored to the customer's requirements.
- Bespoke items available.
General Specification
- Standard pan and tilt fixing of 101.6 PCD.
- Built in cable entry and exit points.
- Equipment loading of up to 25kg.
- Flange mounted root type FM.
- Direct burial type root bases available.
- Standard heights available from 4 to 12 metres*
- Compatible with WEC adaptors, accessories and anti climbs.
*See Technical Sheet for further information, please note the heights specified are nominal and may vary.
1. From the map, select location of installation
2. Excavate as per recommended area and depth
3. Assemble root base as shown in fig. 1
4. Insert root base into the hole ensuring that it is level and that the four studs protrude 60-70mm above the concrete foundation
5. Fit the cable duct if routing via the interior of the column. A plastic pipe of approximately 100mm outside diameter is recommended for this. Ensure this protrudes through the template by 50mm minimum.
6. Pour concrete ensuring that it is a mix of C35 to table 6 BS 8110 and then tamp down well
7. Fit the setting template over the four protruding studs, double-checking that they are level and that clear access can be gained to the cable duct if it is being used
8. Leave the concrete to cure for a minumum of 72 hours prior to attempting to erect the column
9. When fitting the column, ensure that the concrete base is in complete contact with the underside of the column and grout accordingly.
10. When the column has been fitted, protect the studs with a suitable protective coating. Denzo tape or similar is recommend for this
