Lattice Tower (WD)
The original fixed tower designed and built by WEC, naturally evolved into the tilt-over tower range. This family of towers offers all the benefits of the ST range, with the added bonus of tiltability for safe ground level maintenance. This highly cost effective modular tower is designed to give excellent stability and wind resistance characteristics. Predominantly installed within already secure compound environments, the WD tower displays a business-like appearance many clients prefer, with the added feature of safe ground level maintenance.
Design Features
- Standard pan and tilt fixing of 101.6 PCD.
- Fixings included for telemetry receiver.
- Built in cable entry and exit points.
- Two metre sectional construction (3 metre on larger towers).
- Equipment loading of up to 25kg.
- Buried root or flange mounted versions available.
- Standard heights available from 4 to 12 metres.
- Compatible with WEC adaptors, accessories and anti climbs.
General Specification
- A cost effective solution for achieving desired camera height.
- The tilt over tower enables camera maintenance at ground level.
- An ideal installation where health and safety requirements are paramount.
- Off the shelf heights up to 10 metres.
- Maintenance and servicing easily and safely effected by one engineer.
- Rigid triangular lattice structure ensures excellent stability characteristics.
- Modular construction for ease of transportation and erection.
- A transferable winch unit allows multi-site servicing and leaves installation tamper proof.
- Hot dipped galvanised finish for maximum weather protection and low maintenance requirements.
- Custom modifications and towers tailored to the customer's requirements.
- Bespoke items in excess of 12 metres.
1. From the map, select location of installation
2. Excavate as per recommended area and depth

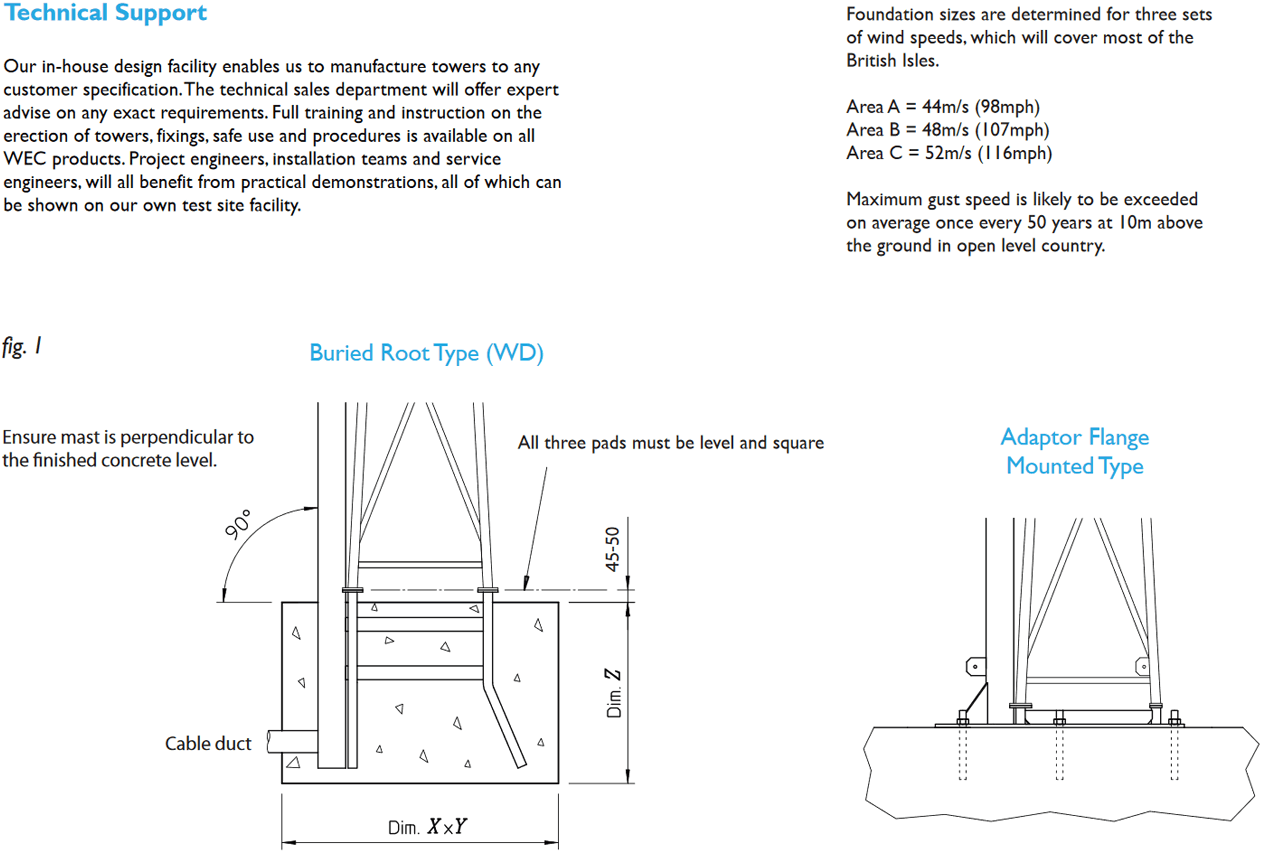

3. Assemble root base as shown in fig. 1
4. Place cable duct in position, if required, and firmly secure
5. Support root in the excavation using locally supplied timber or similar
6. Ensure all three mounting pads are level and protruding 45mm to 50mm above finished concrete level
7. Pour in concrete, ensuring a mix of C35 to table 6 BS 8110, tamp down and level surface
8. Check that all three pads are still level and leave to cure for a minumum of 72 hours prior to erecting the tower
How to
Training Videos
WEC WD Tower Safety Procedure
This Video shows the Operation Instructions to tilt-over a WEC CCTV Lattice Tower (WD range). If you need any further details, please do not hesitate to contact us on 01254 700200
