Modular Tilt Over Square Columns (MTP)

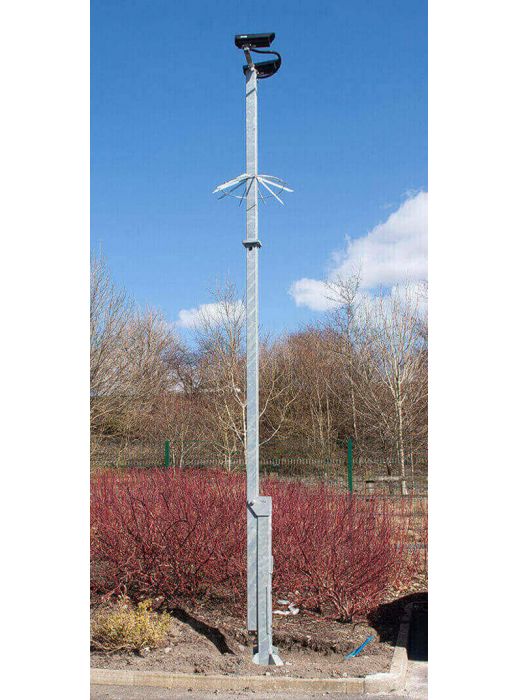

The new MTP modular tilt-over square column designed and built by WEC is a highly cost-effective camera column which enables our customers to achieve desired camera height.
Supplied in sections for easy assembly and transportation, this square column is a product of choice for our large export market The MTP Column was designed with the installers in mind and is offered in heights of 4, 6, and 8m. The newly designed flush fitting door gives added protection against leverage and are fitted as standard.
Design Features
- Cost effective solution for achieving desired camera height.
- Modular construction makes this unit ideal for inaccessible areas as sections can usually be by hand.
- Stable structure for all camera types
- Tilt over facility enables camera servicing at ground level by single engineer.
- Modular Construction in sections allows for easy erection and extension if required
- Stocked in heights up to 8m. Other heights on request.
- Lockable access door is provided as standard.
- Transferable/removable winch unit ensures installations are secure and reduces installation cost.
- Hot dipped galvanised to ISO1461 for maximum protection against even the harshest environments.
- Columns can be customised to suit customers’ specific requirements.
- Fully concealed cable pathway.
General Specifications
- Standard 101.6mm PCD fixing can be modified on request.
- Bolt down version using a template and bolt set.
- Built in cable entry and exit points.
- Typical equipment loading up to 25kg for greater loads please contact us.
- Standard Heights 4, 6, 8m. Other heights on request.
- Compatible with all WEC accessories.
1. From the map, select location of installation
2. Excavate as per recommended area and depth
3. Assemble root base as shown in fig. 1
4. Insert root base into the hole ensuring that it is level and that the four studs protrude 60-70mm above the concrete foundation
5. Fit the cable duct if routing via the interior of the column. A plastic pipe of approximately 100mm outside diameter is recommended for this. Ensure this protrudes through the template by 50mm minimum.
6. Pour concrete ensuring that it is a mix of C35 to table 6 BS 8110 and then tamp down well
7. Fit the setting template over the four protruding studs, double-checking that they are level and that clear access can be gained to the cable duct if it is being used
8. Leave the concrete to cure for a minumum of 72 hours prior to attempting to erect the column
9. When fitting the column, ensure that the concrete base is in complete contact with the underside of the column and grout accordingly.
10. When the column has been fitted, protect the studs with a suitable protective coating. Denzo tape or similar is recommend for this
